Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Elecstar
  • Model Number: UBB-24-60F
  • Type: Display Cooler
  • Style: Single-temperature
  • Certification: CE
  • Capacity: 446L
  • Temperature: 2°C~10°C
  • Climate Type: N, ST
  • Refrigerant: R134a or R600a

Packaging & Delivery

Packaging Details standard export carton
Delivery Time 35 days

Specifications

1.Fan cooling
2.Large glass door area
3.Self closing door
4.Locks as standard
5.Digital temperature display

  3 Sliding Glass Door Commercial Back Bar Cooler Bottle Fridge







Product Description

 1.Refrigerated back bar coolers are designed with enduring quality and value

2.Exterior--heavy duty, wear black resistant coating paint,All stainless steel counter top

3.Interior--stainless steel floor and side

4.NSF-7 approved for packaged and bottle product

5.Positive seal doors with lock and key

6.LED light (Option)

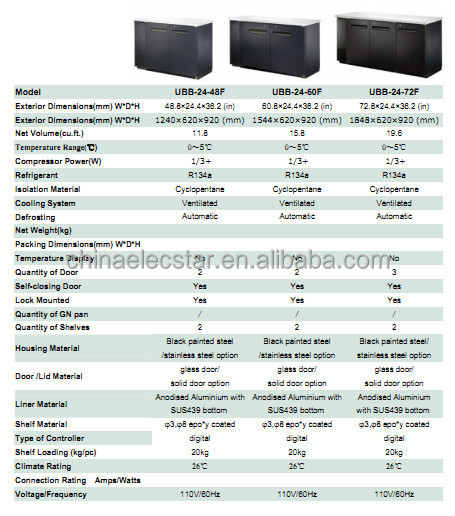

Detailed product specifications



 UBB-24-48GUBB-24-60GUBB-24-72G
Doors223
Temperature range33°F~41°F                       (0°C~5°C)33°F~41°F                       (0°C~5°C)33°F~41°F                      (0°C~5°C)
Capacity11.8 (cu.ft.)                     335 (L)15.8 (cu.ft.)                   446 (L)19.6 (cu.ft.)                   556 (L)
Shelves446
Cabinet Exterior dimensions   ( L×D×H)48.8×24.4×36.2 (in)       1240×620×920 (mm)60.8×24.4×36.2 (in)     1544×620×920 (mm)72.8×24.4×36.2 (in) 1848×620×920 (mm)
Cabinet Interior dimensions   ( L×D×H)36.2*18.5*30.5(in) 920*470*775(mm)48.2*18.5*30.5(in) 1224*470*775(mm)60.2*18.5*30.5(in) 1528*470*775(mm)
Compressor HP1/3+1/3+1/3+
Voltage115V/60Hz                     230-240V/50Hz115V/60Hz                     230-240V/50Hz115V/60Hz                     230-240V/50Hz
Amps6.46.47.4
NEMA Config5-15P5-15P5-15P
Gross Weight315 lps / 143 kgs380 lps / 173 kgs410 lps / 186 kgs
Loading quatity54 pcs48 pcs36 pcs





 UBB-24-48G



 UBB-24-60G

 UBB-24-72G
